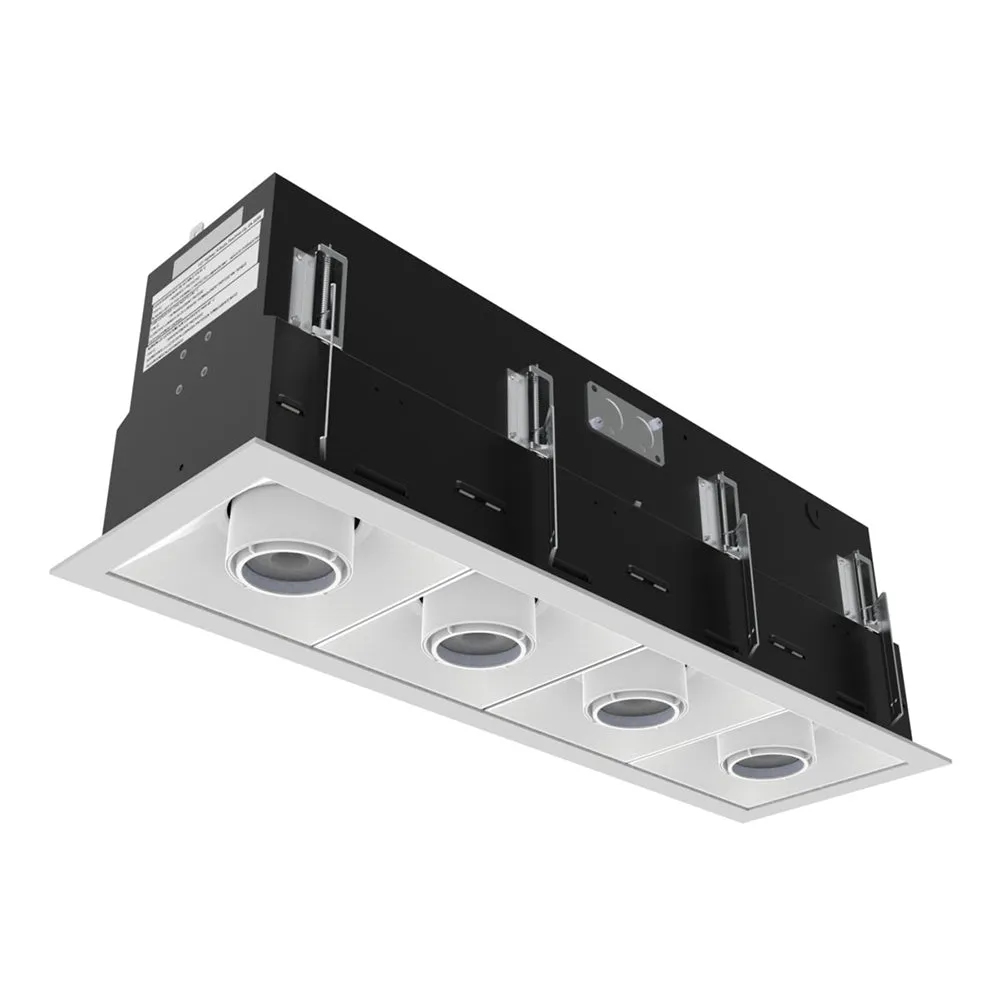

Portfolio Lighting LAMR4B 4" Recessed Multi-Head

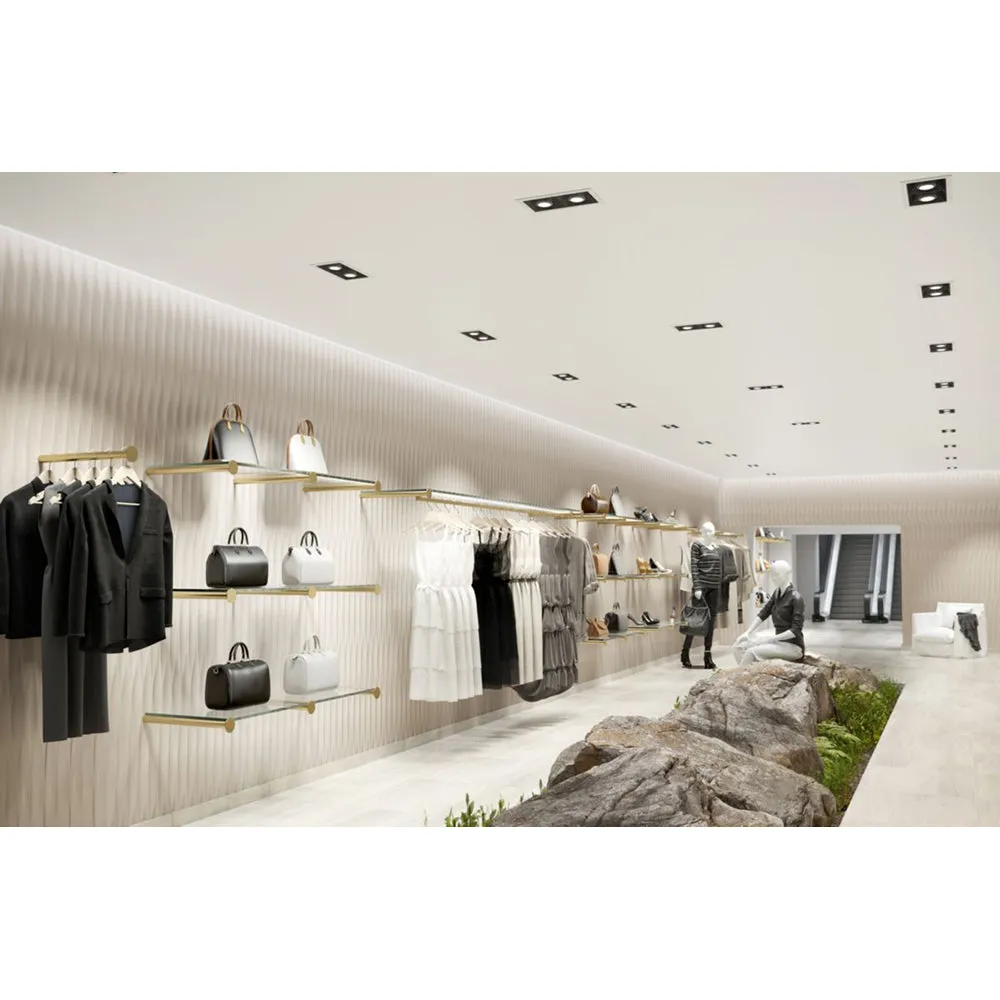

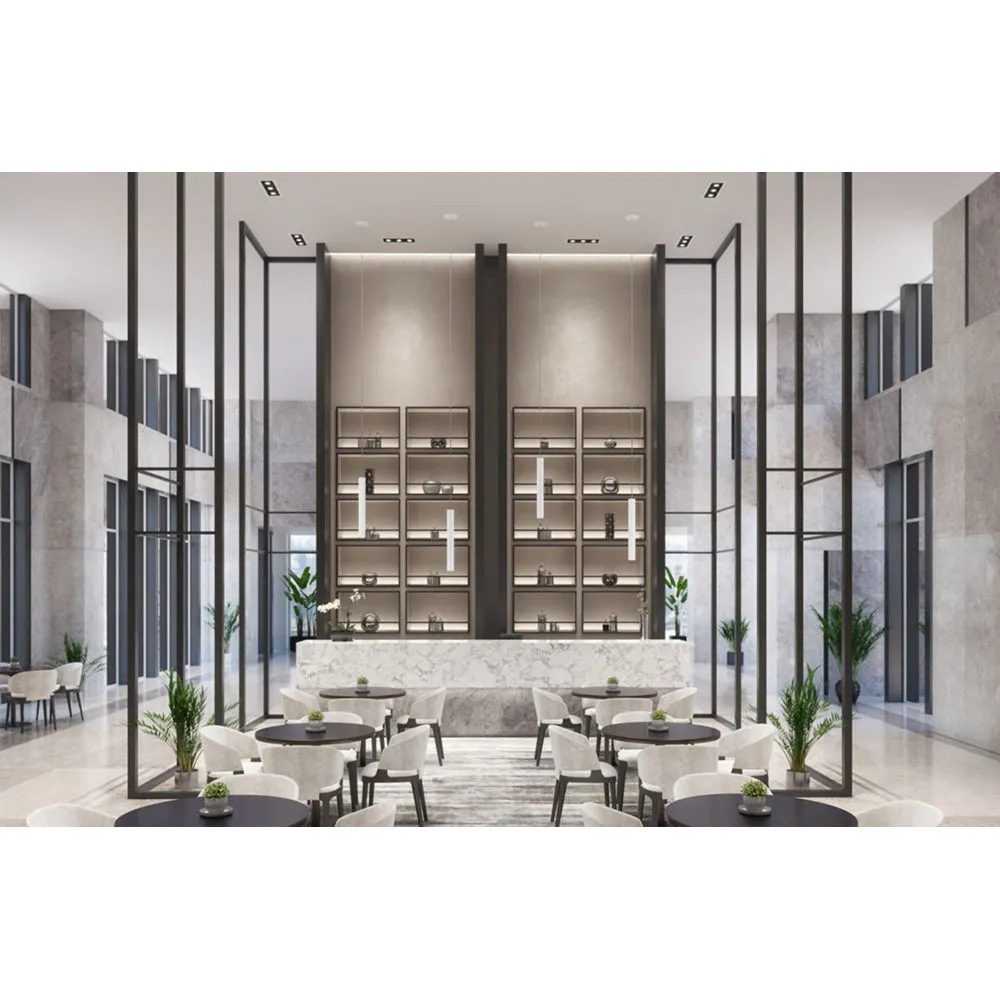

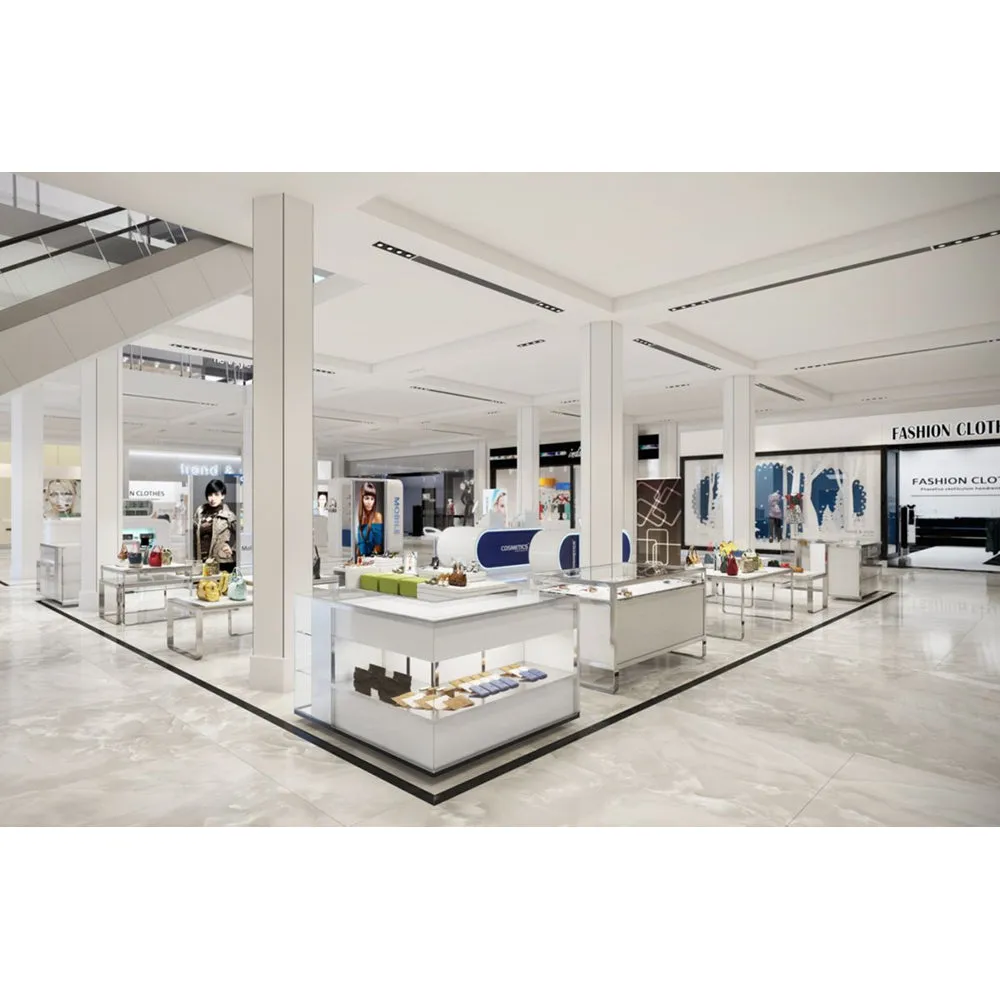

Accent architectural spaces

Portfolio 1, 2, 3, or 4 multi-head adjustable, telescoping recessed install from below luminaire designed for accent architectural and commercial lighting. Designed for accent and wall wash applications with interchangeable optics, available in and 10°-75° distributions in 5° increments providing smooth distribution. A standard 0-10V driver dims to 1% and a multitude of optional drivers are available.

Adjustable Beam Angle

Each fixture head allows for 70° tilt out of the luminaire and 355° of rotation for full aiming flexibility. Put the light where you want it.

Features of Portfolio Lighting LAMR4B 4" Recessed Multi-Head

1, 2, 3, or 4 head adjustable telescoping multi-head with 70° tilt and 355° rotation
Distributions: 10° - 70°, Optic holds 2 lens media
6 color temperatures: 2400K, 2700K, 3000K, 3500K, 4000K and 5000K CCT
CRI: 90 or 97
Lumens: 800 and 1000
Matte black, matte white, and matte metallic silver paint finishes
0-10V 1% dimming driver, Optional 100%-1% DALI, 0-10V, or DMX drivers
Wavelinx and DLVP connected systems, 5-year warranty
