Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Agency Approvals | cULus |
| Alternate Mfr Part Number | ST 4-FSI/C-LED 12 |
| Approvals | CSA, UL Recognized, cUL Recognized, GL, RS, EAC, cULus Recognized |
| Color | Black |
| Current Rating | 10 A |
| Level | Single Level |
| Mounting Type | DIN Rail Mount |
| Number of Levels | 1 Level |
| Number of Positions | 2 Position |
| Pin Spacing | 8.2 mm(0.323 in) |
| Primary Type | DIN Rail |
| Termination | DIN Rail |
| Type | Feed-Through |
| UPC Code | 4017918890452 |
| Voltage Rating | 400 V |
| Wire Size | 10-28 AWG |
| Wire Termination Type | Spring Cage |

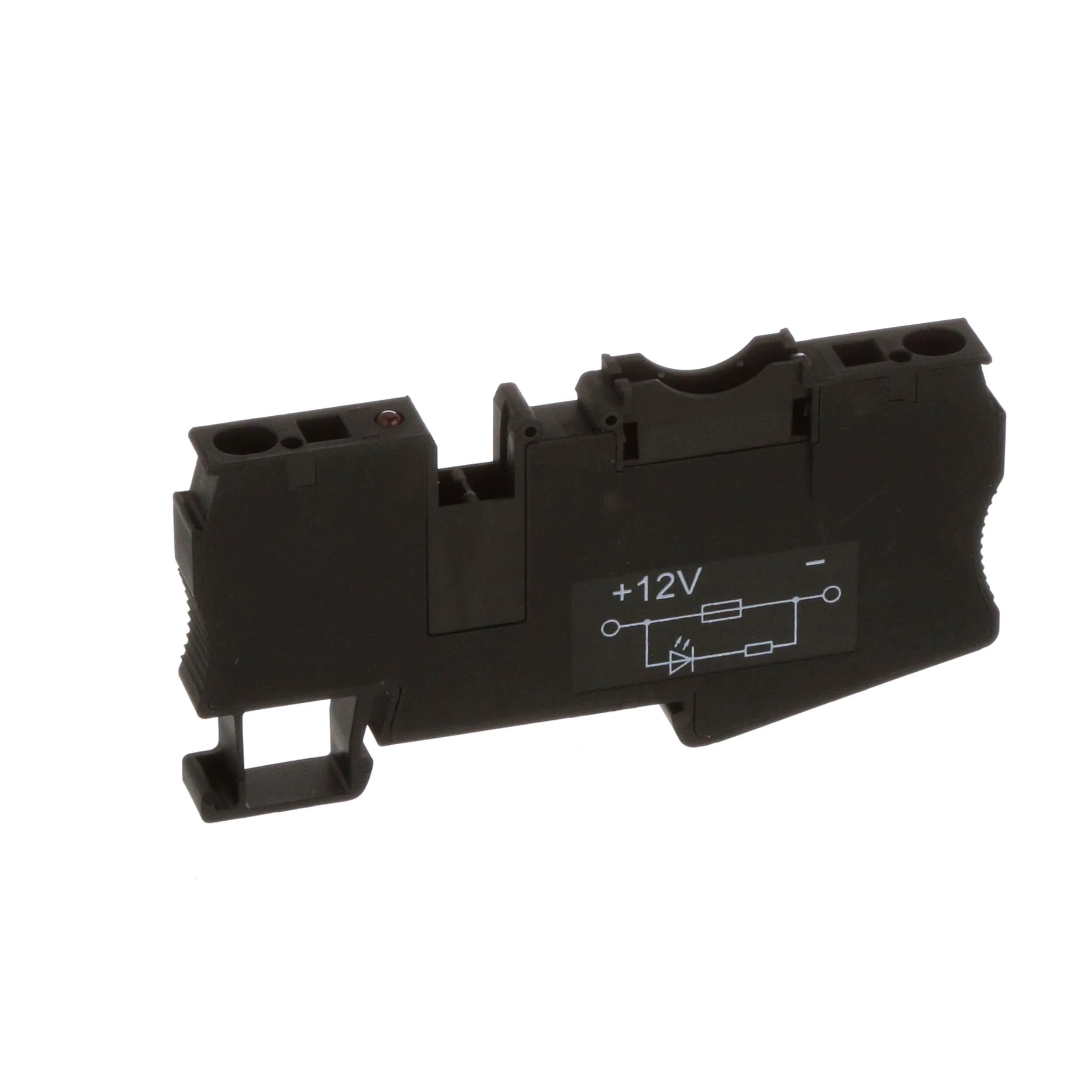

Overview
The ST Spring-cage connection. Proven vibration resistance
Connect conductors that are vibration resistant, gas-tight, and have long-term stability – with the spring-loaded conductor contacting.
Features:
