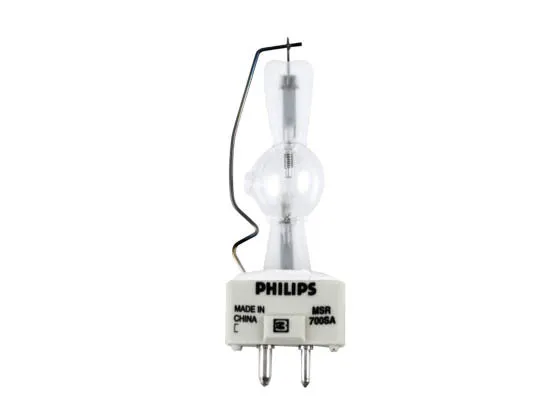

MSR 700/SA 1CT/4 Philips 28712-8 928170305115

Cross Ref:
MSR 700/SA 1CT/4 Philips 28712-8
KSR 700SA/60 KOTO
USR 700/SA USHIO 5002010
71.2528.0700
55030054
CSR 700/SA GE 15380
LMSR700SA-P
AMHK-700SA
HTI 705W/SE XS OSRAM DISCONTINUED
NSK 700/SA
LP700/SA

Abbreviation Name MSR 700 SA 1CT
Base GY9.5 2-Pin Prefocus
Bulb Type High Intensity Discharge Bulbs (HID)
Color Rendering Index (CRI) 80
Color Temperature (K) 5600K
Luminous Flux (LM) 55000
Maximum Overall Length (in) 32.67
Rated Life (Hours) 750
Wattage (W) 700W

General information
Cap-Base
GY9.5
Operating Position UNIVERSAL [ Any or Universal (U)]
Main Application Studio/Disco
Life to 50% Failures (Nom) 750 h
System Description Short Arc
Light technical
Color Code - [ Not Specified]
Luminous Flux (Min) 49500 lm
Luminous Flux (Nom) 55000 lm
Chromaticity Coordinate X (Nom) 333
Chromaticity Coordinate Y (Nom) 342
Correlated Color Temperature (Nom) 5600 K
Luminous Efficacy (rated) (Nom) 78 lm/W
Color Rendering Index (Nom) 80
Operating and electrical
Power (Nom) 700 W
Lamp Current (Nom) 11 A
Ignition Supply Voltage (Min) 207 V
Controls and dimming
Dimmable No
Mechanical and housing
Cap-Base Information
-
Luminaire design requirements
Bulb Temperature (Max) 1000 °C
Pinch Temperature (Max) 500 °C
Product data
Full product code 871829122802800
Order product name MSR 700 SA 1CT/4
EAN/UPC - Product 8718291228028
Order code 928170305115
Numerator - Quantity Per Pack 1
Numerator - Packs per outer box 4
Material Nr. (12NC) 928170305115
Net Weight (Piece) 0.020 kg
