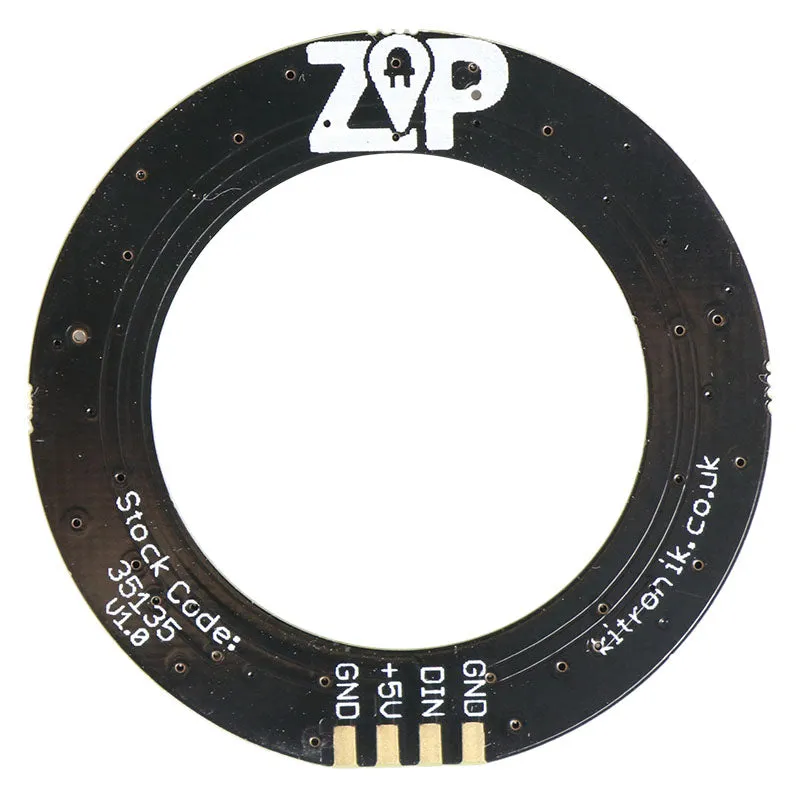

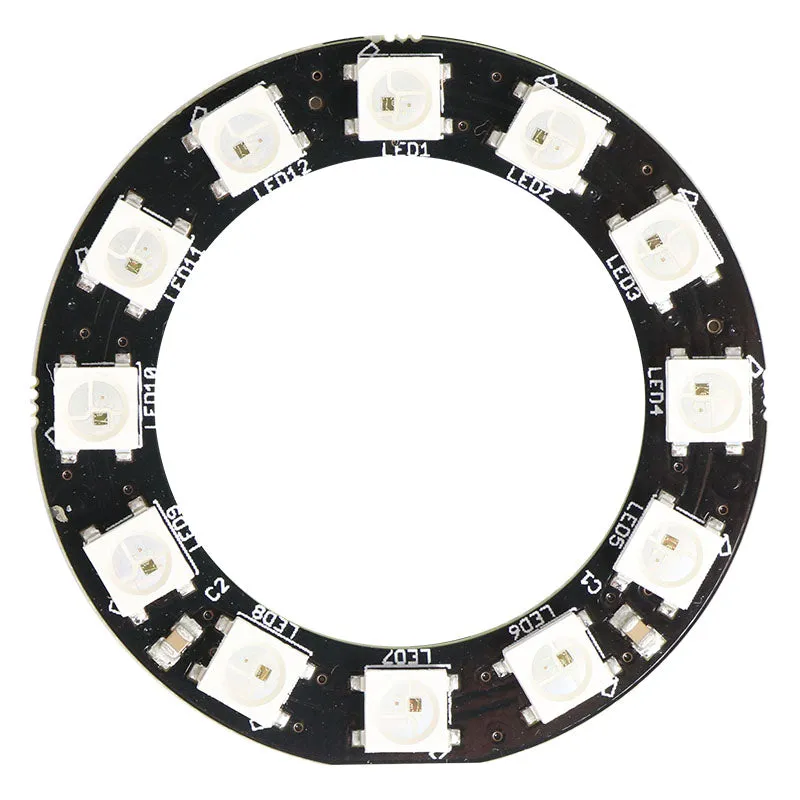

Each of our new ZIP Circles has 12 individually addressable RGB LED’s. Each LED can be controlled independently and all LEDs are connected using the same three wire bus.

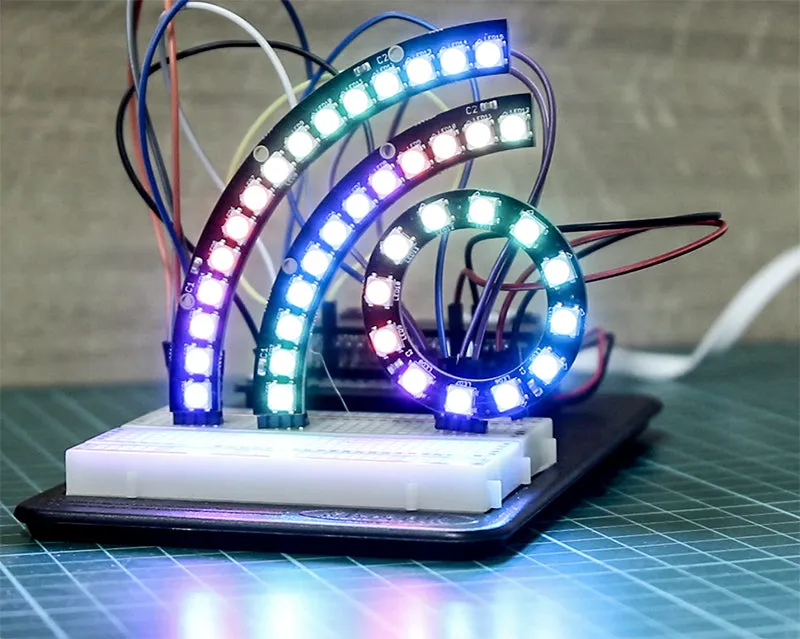

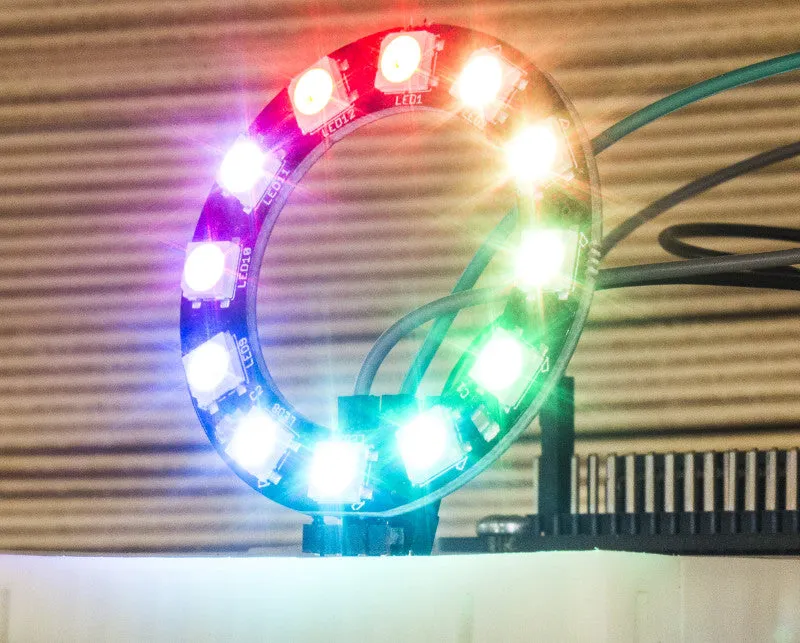

Each LED can produce a full spectrum of colours independent to all of the other LEDs on the bus. Each ZIP LED has a Red, Green and Blue element within the LED, and each of these can achieve 256 levels of brightness. This results in 16,777,216 possible output colours. Multiple ZIP LEDs can be connected to produce longer strings/strips.
The LEDs used are based on the WS2812B part which is compatible with any WS2812B driver code. They can also be coded in the MakeCode Block/Javascript editor.
Features:
- Simple 3 wire connection for all LEDs.
- Compatible with any WS2812B driver code.
- They can be coded with the Microsoft MakeCode Editor for the BBC microbit.
- Integrated reset circuit.
Contents:
- 1 x Kitronik ZIP Circle.
Dimensions:
- Width: 7.5mm.
- Height: 3mm.
- PCB Height: 1.5mm.
- Inner Diameter: 29.2mm.
- Outer Diameter: 44.2mm.
Resources:
- .
- .
- .
Third-Party Resources:
Insight Resources Mr Bit is an online educational coding platform that also features sections devoted to some of our key micro:bit accessories, including this kit. This content has been developed by Insight Resources and any questions relating to them should be directed at their contact information. To access these resources, please visit;
- .
