Product Notice

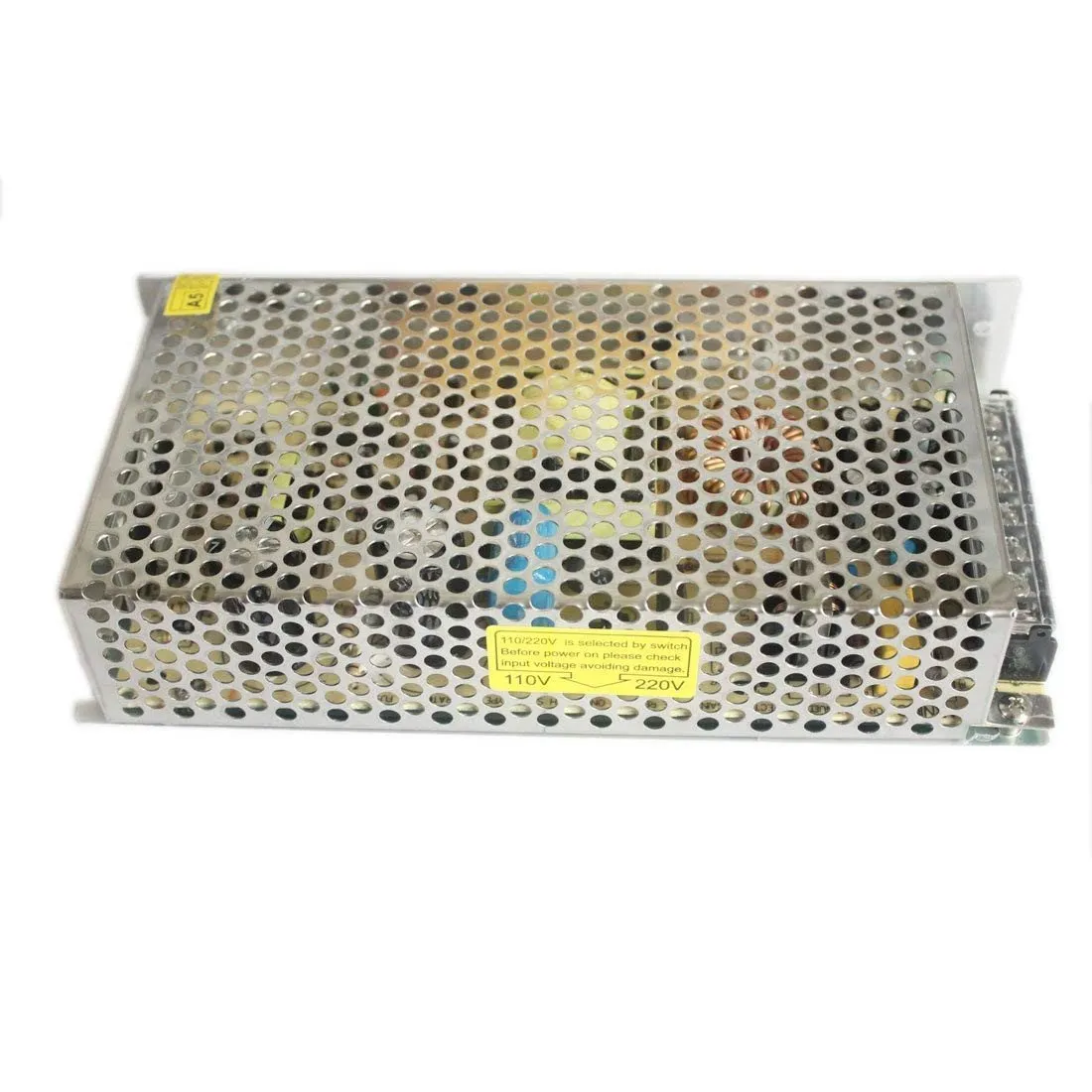

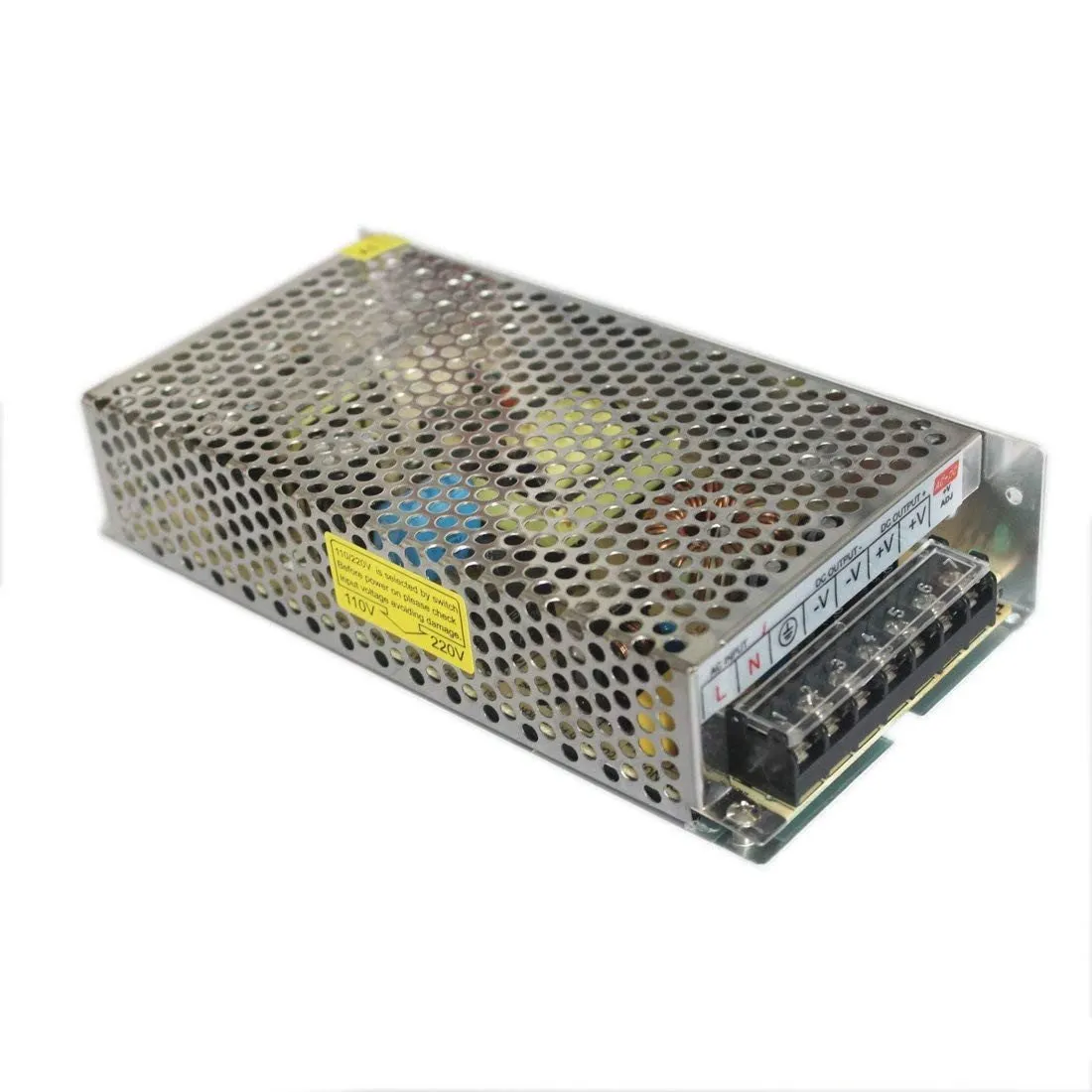

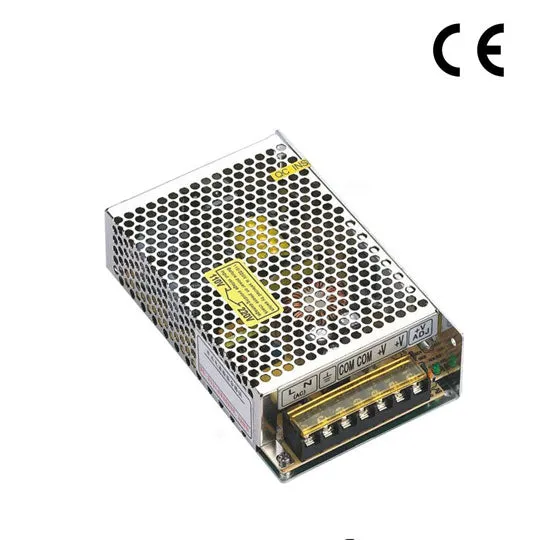

Item: Single Output Switching Power Supply
Input Voltage: 100-240V AC
Output Voltage: DC12V/DC24V/DC5V
Wattage: 40W~400W

Features:
Non-Dimmable
This series power supply Universal full range AC input
Protection short circuit,overload;over voltage
High reliability, Low Cost,Widely use for LED light box,LED module and LED strips

Notice

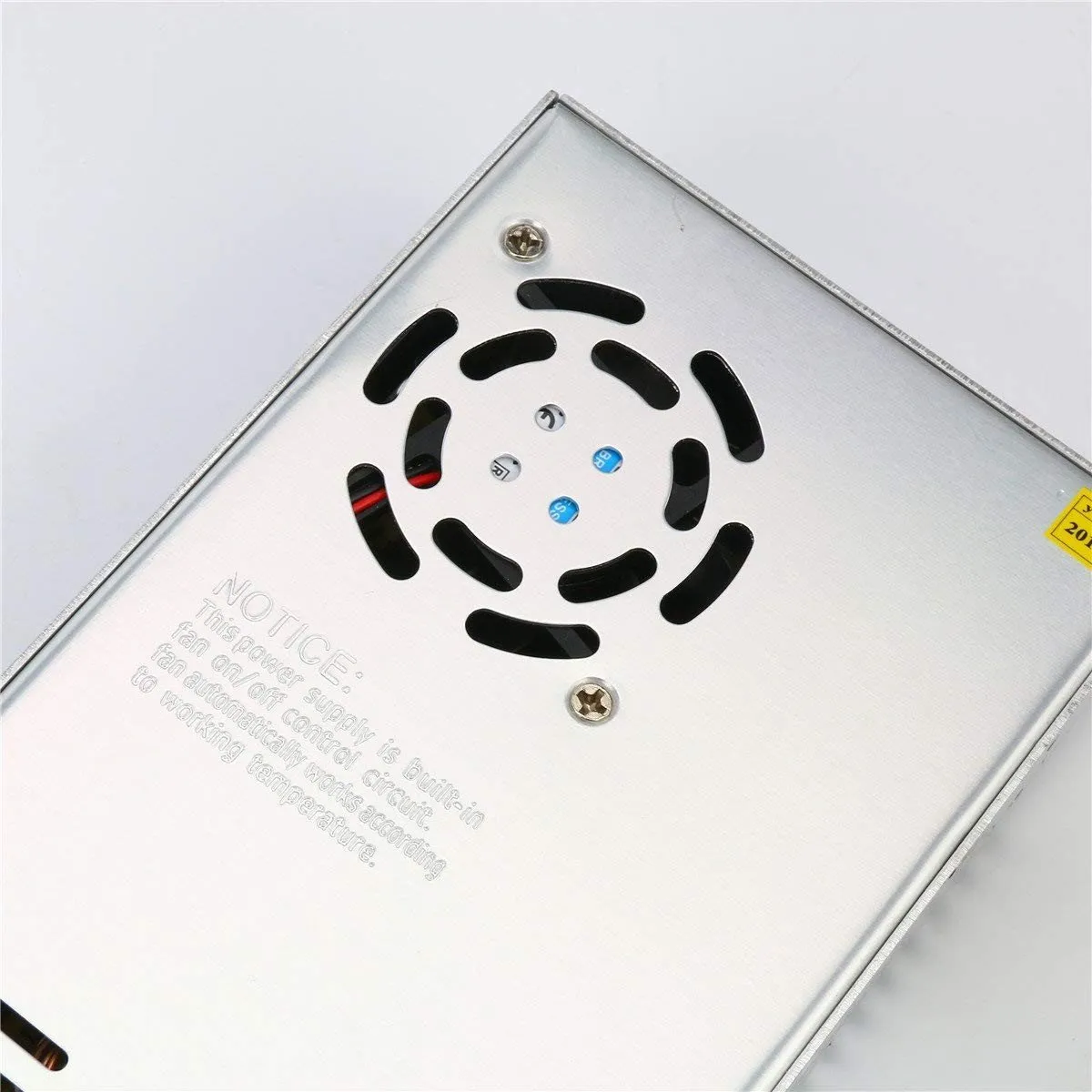

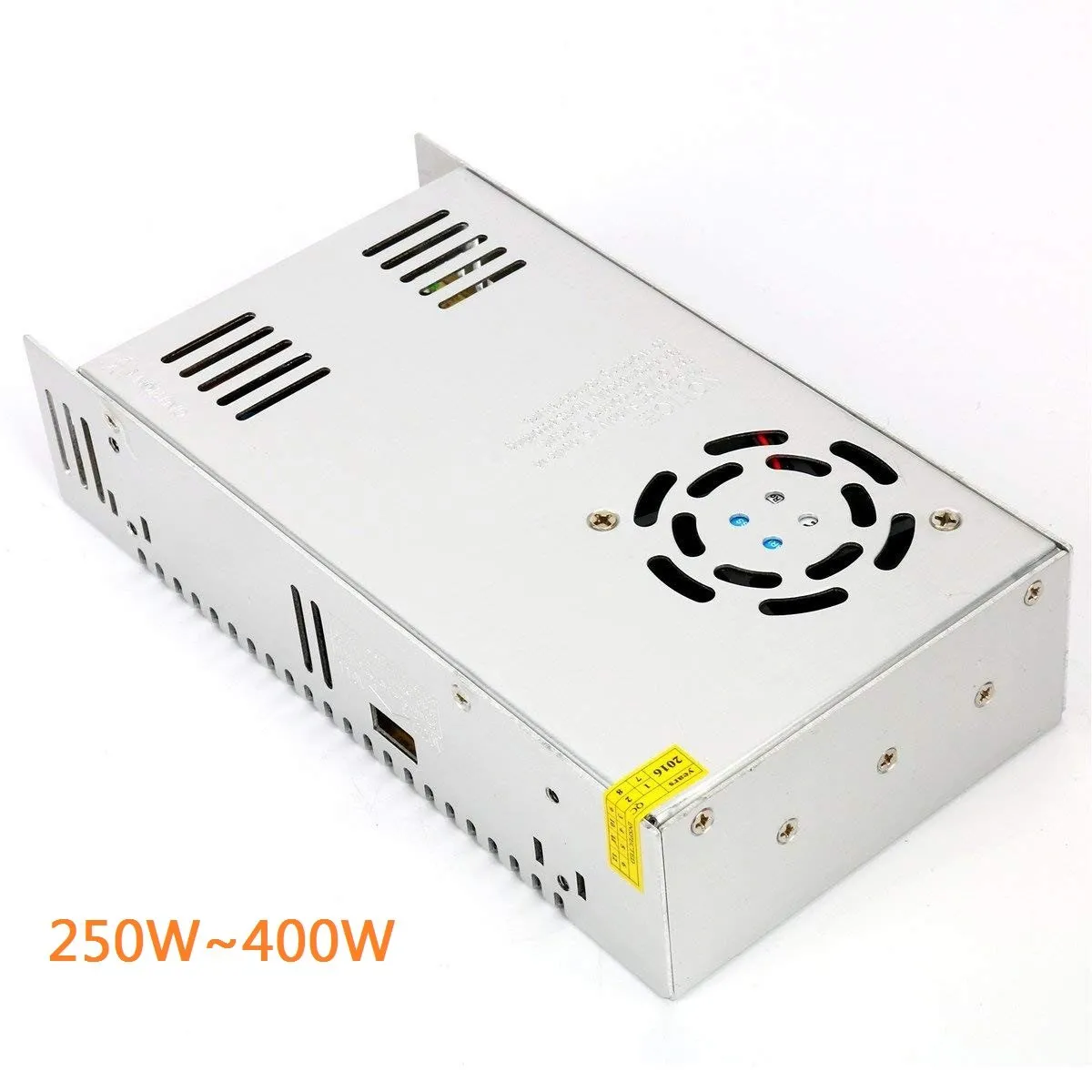

The metal shell is different between the powersupply whose wattage is below and over 250W

Dimensions:

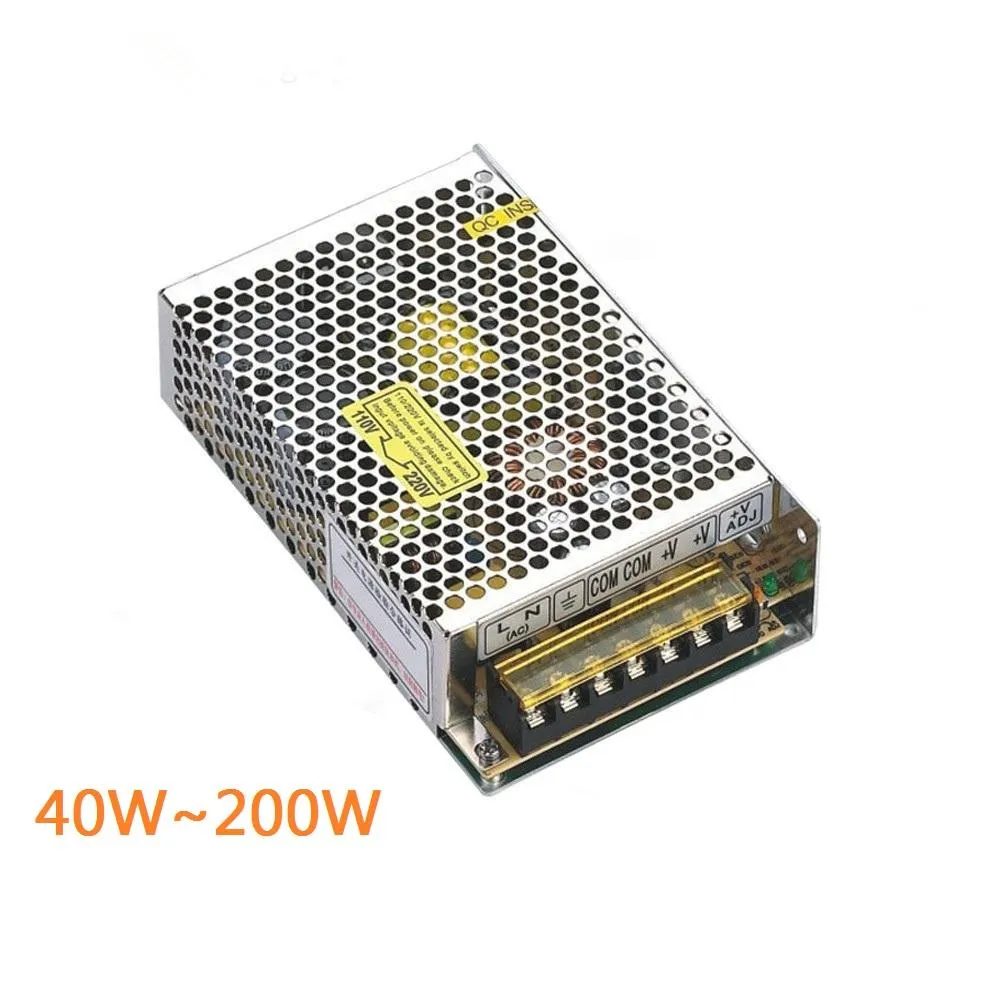

▼5V/12V/24V: 40W-400W

     40W: 85*58*38 (mm)

     60W: 111*78*36 (mm)

    100W: 159*98*38 (mm)

    120W: 159*98*38 (mm)

    150W: 159*98*38 (mm)

    200W: 199*98*38 (mm)

    250W: 199*98*38 (mm)

    320W: 215*115*50 (mm)

    350W: 215*115*50 (mm)

    400W: 215*115*50 (mm)
