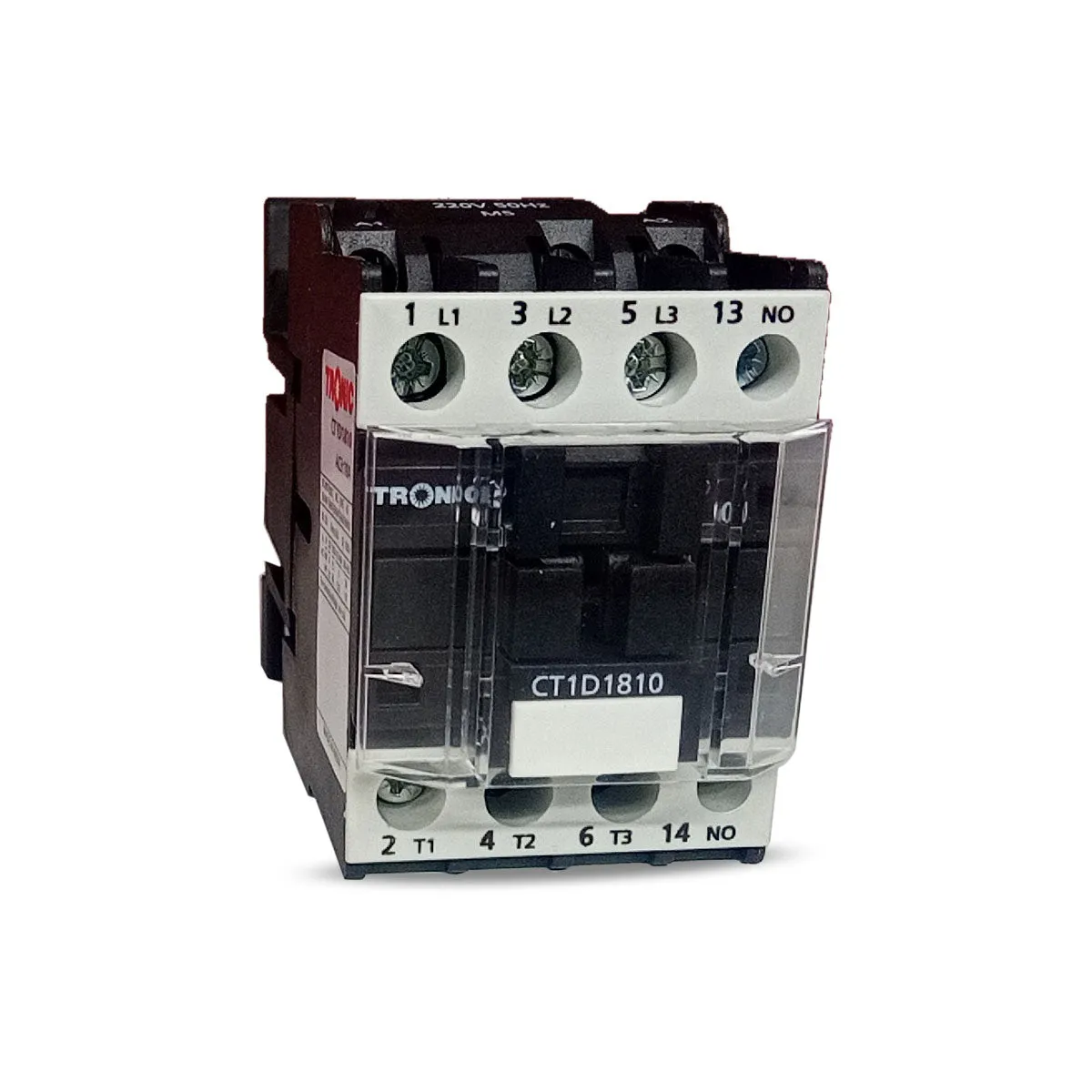

This AC3 contactor is designed for high-power switching applications. It is capable of handling up to 18 amps and 9kW of power at 415V, making it suitable for controlling large electrical loads.

Applications:

• Industrial Machinery: Used to control large motors and machinery in industrial settings.
• HVAC Systems: Ideal for switching high-power heating, ventilation, and air conditioning systems.
• Lighting Control: Suitable for managing large lighting systems in commercial and residential buildings.

How to Use:

1. Wiring: Connect the contactor to the power circuit, ensuring proper connections to the 415V power supply and the control voltage of 220V.
2. Operation: The contactor uses an electromagnetic coil to switch the electrical circuit. When the coil is energized (by the 220V control voltage), it closes the normally open (NO) contacts, allowing power to flow to the load.
3. Effect: Properly installed, the contactor will effectively manage and switch high-power loads, ensuring reliable operation and protection of your electrical system.
