Product Details
＋
The new Orca Range from Bluefin will certainly make your boat stand out
Key Features
- Surface mounted.
- The most powerful surface mounted Underwater LED lights available.
- 2 models to choose from, Single colour or RGBW Colour Change model with WIFI DMX functionality

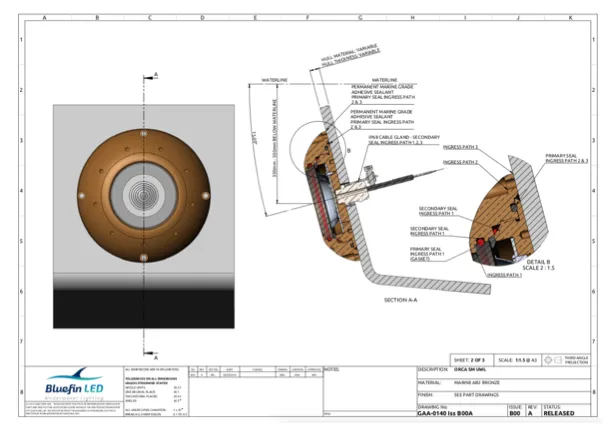

- A radical departure from conventional sealing meathods the Orca has an unique rear cassette design with multiple sealing systems
- Machined from Billet AB2 Marine grade Bronze.
- Suitable for Transom mounting on all hull types.
- Built in driver technology with active thermal rollback.
- RINA Type approval
- 12V version also available with 7000 fixture lumens (price on application)
Specification
- Suitable transom or side hull mounting
- Surface mount, requires 25mm/1" cable entry hole
- Recommended for boats upto 30m /105 ft
- Max Lamp Lumens 16000 / Fixture Lumens 13000
- Typical LED life expectancy 50,000 hours
- Voltage 24v, Power Draw 5.1A
- For Mains Voltage systems purchase our 110/240V PSU
- Over voltage,current,reverse polarity,active thermal protection
- Hydro Block and Nano Coating Technology
- Fixture profile 32mm,1.26"
- Fixture diameter 140mm,5.5"
- Lens: optical grade 8mm Boroscilicate glass,65 degree beam angle
- Body AB2 Bronze throughout
- Weight 2.3kg/5.06lbs
- 2 years warranty
- Delrin Isolation Sleeve must be used if fitting lights to Steel or Aluminium hulls
- Bluefin Orca 020 SM White 24V
- Bluefin Orca 020 SM Blue 24V
- Bluefin Orca 020 SM Green 24V
