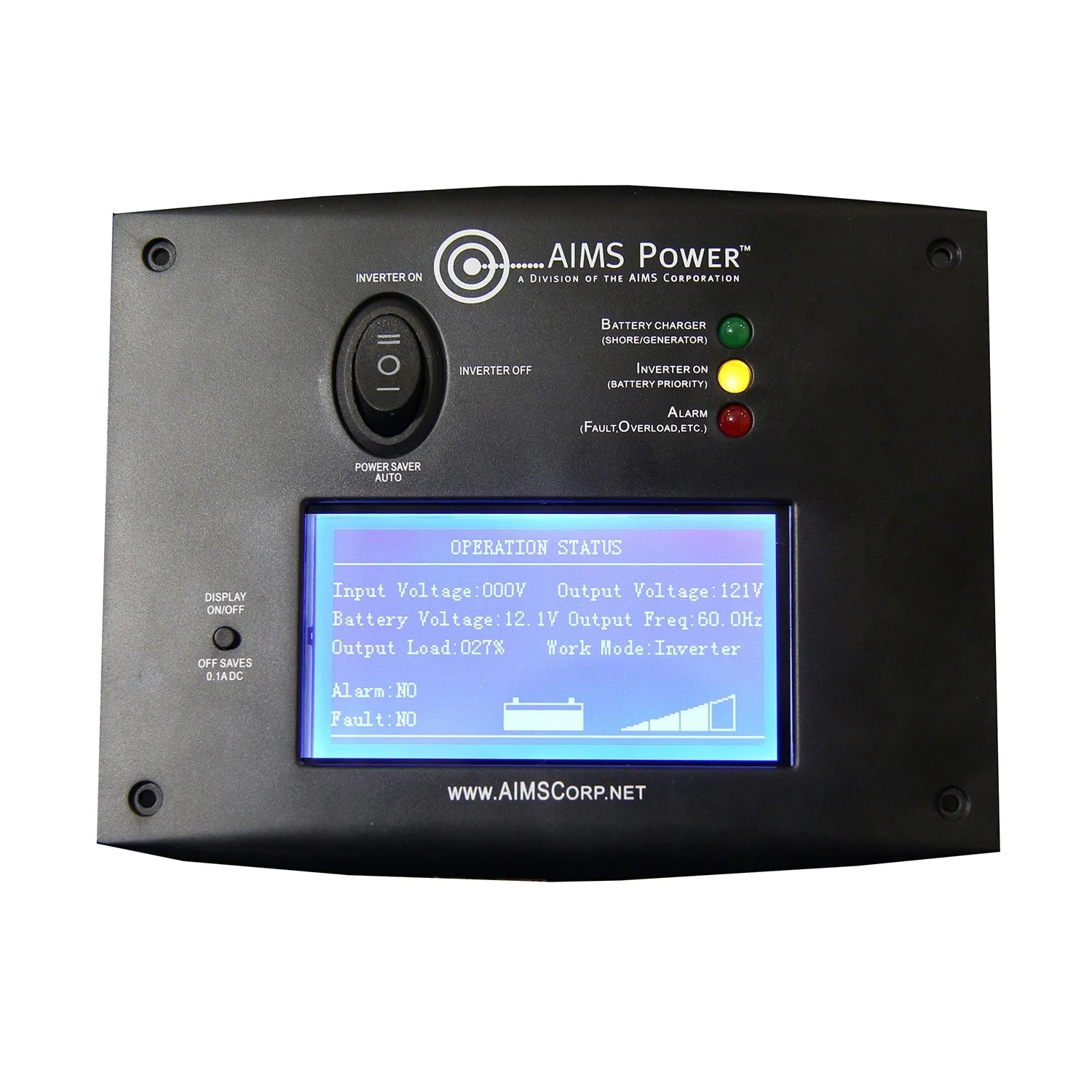

AIMS Power LCD Remote Panel for Pure Sine Inverter Chargers Overview

LCD Remote Panel for use with AIMS Power PICOGLF series of .

NOTE: This remote only works on models purchased after 12/1/2014.

AIMS Power LCD Remote Panel Features

General Features

• Battery voltage
• AC input voltage
• AC output voltage
• Frequency monitoring
• Load percentage monitoring
• Includes 60 foot connection cable

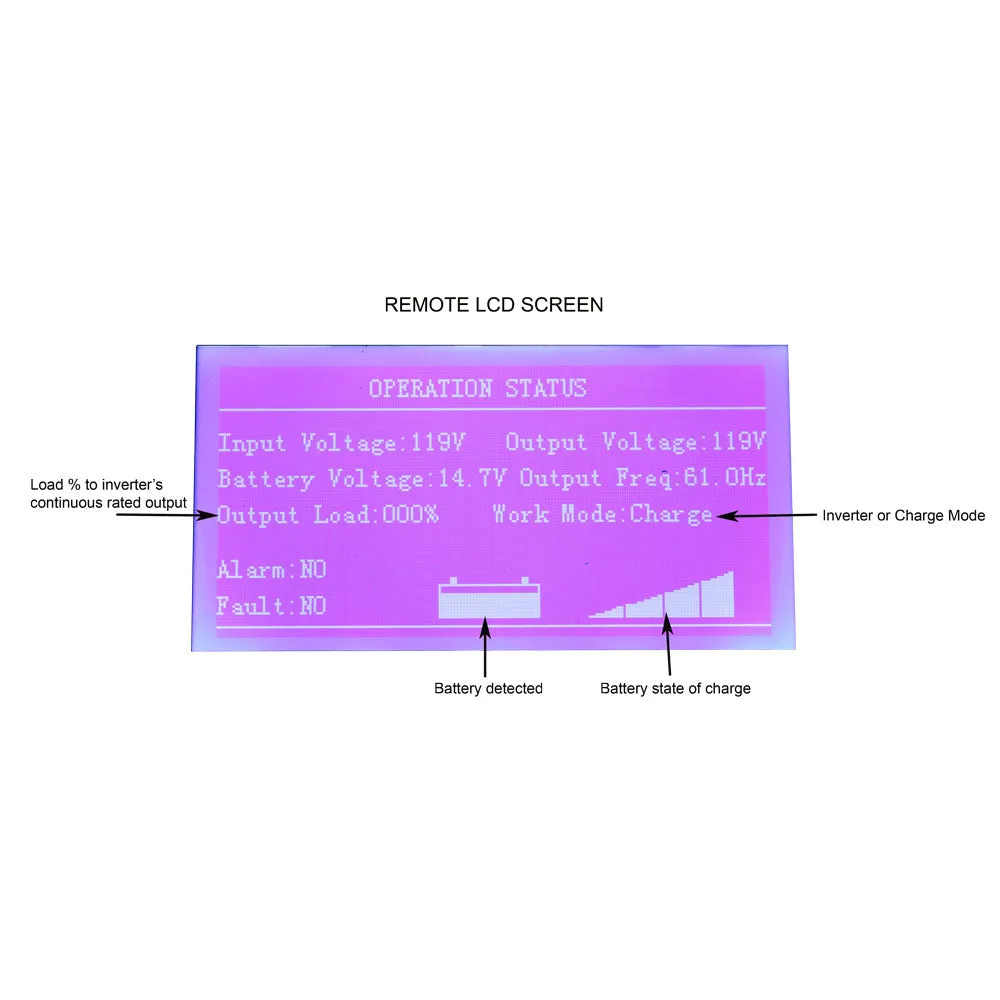

LCD Display Features

• (1) Shore/Generator voltage
• (2) DC voltage on inverter
• (3) Load when inverting %
• (4) Low/high voltage, over temp, overload
• (5) Fault condition
• (6) AC Output voltage
• (7) Output frequency
• (8) Bypass (online) / inverter mode
• (9) Battery state of charge graph

Dimensions

• 5 1/2"L x 1 1/4"H x 4 1/4"W
