Advantage Environmental Lighting SS1R 1 Lamp Staggered Strip LED Retrofit Kit

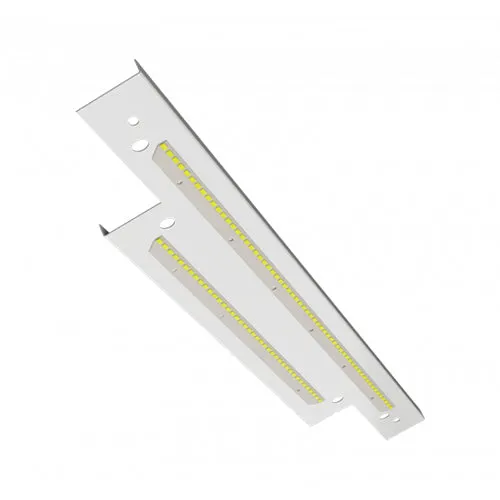

The SS1R is a retrofit kit designed for one-lamp fluorescent staggered strip luminaires. Available in a variety of lengths and sizes to accommodate most commercial fluorescent staggered strips. Simple and quick installation allows for a cost-efficient LED retrofit without removal of the existing strip fixture. Long lifespan LEDs and LED drivers eliminate costly maintenance.
CONSTRUCTION

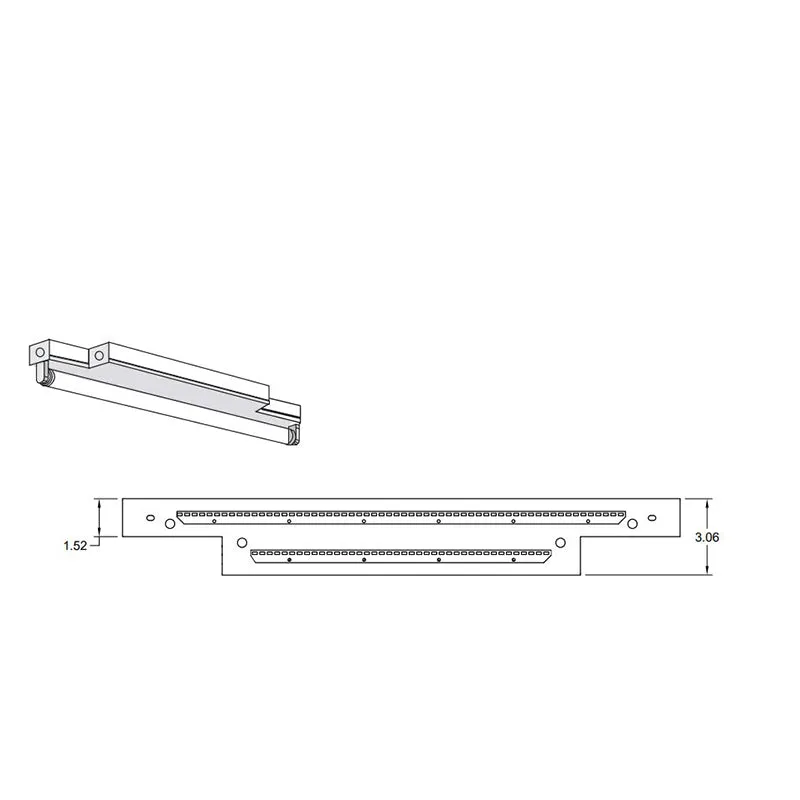

22 gauge steel with a reflective white finish, available in a variety of lengths and widths. If custom sizes are needed, please consult with factory.
ELECTRICAL SYSTEM
Electronic LED driver, 0-10V dimming standard, 50/60Hz. Long-life LED system rated for >100K hours (L70 @ 25°C). Complies with federal energy efficiency standards.
LISTINGS
UL listed. Made in the USA, BAA Compliant.
LED
80 CRI or 90 CRI LEDs available in 3000K, 3500K, 4000K and 5000K. Lifespan is >100,000 hours at 70% lumen maintenance. Available in one LED board and 2 LED board configuration. LM79, LM80 and TM21 compliant.
WARRANTY
5 - Year Limited Warranty.
