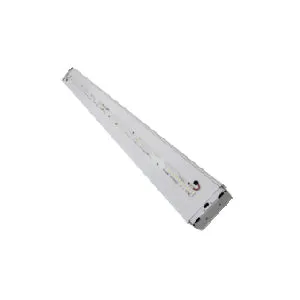

Advantage Environmental Lighting LSB LED Strip

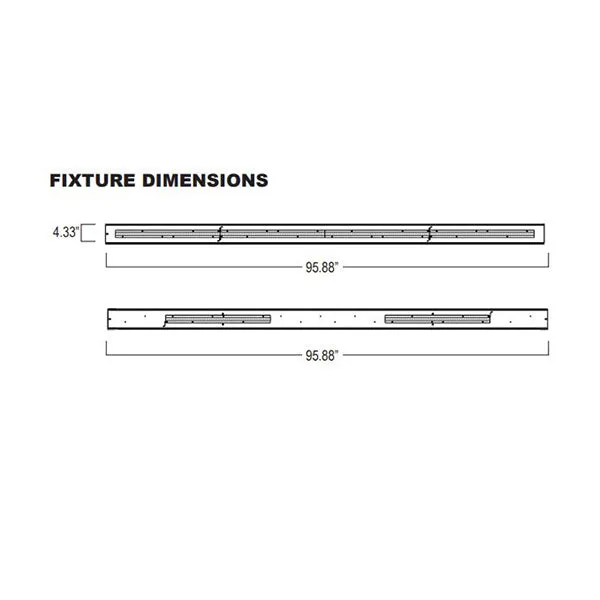

The LSB Series is a LED Strip available in 2', 3', 4’ or 8’ body lengths. It was designed for surface or suspended mounting applications. The LSB utilizes state-of-the-art LED technology to deliver the highest possible efficiency in the lighting industry.

APPLICATIONS

The LSB Series of Strips were designed to be high quality, energy efficient LED fixtures for use in commercial applications, offices, government facilities, schools, and public areas.

CONSTRUCTION

The fixture is constructed of a heavy gauge cold rolled steel body.

OPTICAL SYSTEM

High output LED’s available in 3000K, 3500K, 4000K, and 5000K. CRI >82. White polyester polymer finish with a high reflectivity.

ELECTRICAL SYSTEM

Electronic drivers are available for 120/277V applications. Long-life LED system rated for >100K life hours (L70 @ 40°C). Metal gear tray for internal LED driver. Complies with federal energy efficiency standards.

MOUNTING

Surface or pendant mount, individually or in continuous rows. Sufficient knockouts are provided. Double KO access on 4 ft and longer to facilitate wiring of units for multiple ballast configurations.

LISTINGS

Independently tested to IESNA LM-79 and LM-80 specifications. UL and cUL Listed. Damp location rated.

WARRANTY

5-Year Limited Warranty.
