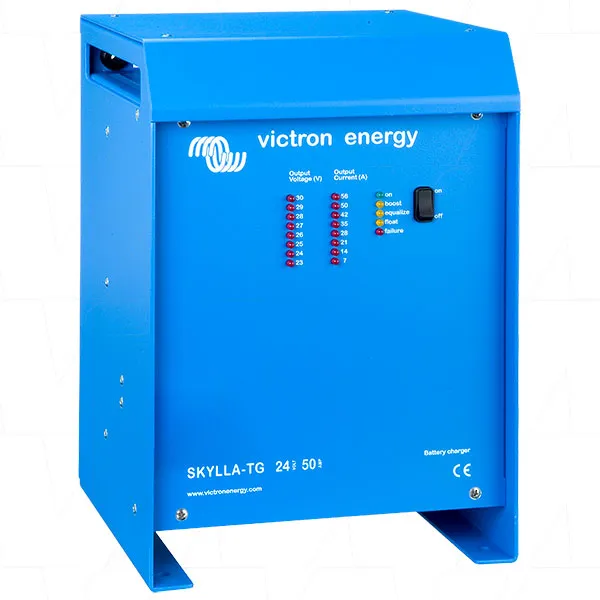

24V 50A TG SLA Two Output Charger with Universal Input GL & M8 Connection SDTG2400503

All models will operate without any adjustment needed over a 90 to 265 Volt input voltage range, whether 50 Hz or 60 Hz. The chargers will also accept a 90-400 V DC supply. The Chargers have been approved by Germanischer Lloyd (GL) to environmental category C, EMC 1. Category C applies to equipment protected from the weather. EMC 1 applies to conducted and radiated emission limits for equipment installed on the bridge of a ship. The GL certification applies to 185-265 V AC supply.

Features:

• Microprocessor control
• Can be used as power supply
• Battery temperature sensor for temperature compensated charging
• Battery voltage sensing to compensate for voltage loss due to cable resistance
• The GL certification applies to 185-265 V AC supply.
• The chargers will also accept a 90-400 V DC supply
• The GL certification applies to 185-265 V AC supply.

The approval to GL C, EMC1 implies that the Chargers also complies to IEC 60945-2002, category ‚ protected‚ and ‚ equipment installed on the bridge of a ship‚ .
